• Add more material at demanding contact points
Compared with thin heat-treated fiberglass sleeves, it delivers a thicker thermal insulation layer and abrasion-resistant layer.
• Keep the braid stable under vibration
Resin saturation helps the sleeve maintain a tight structure around moving cables and hoses exposed to mechanical stress.
• Reduce loose fiberglass during processing
The treated construction is designed to minimize dusting while cutting, routing and installing the sleeve.
• Enhanced Abrasion Resistance
The heavy-wall fiberglass braid and high-temperature resin treatment help reduce surface wear caused by friction, providing enhanced mechanical protection for cables and hoses in high-temperature environments.

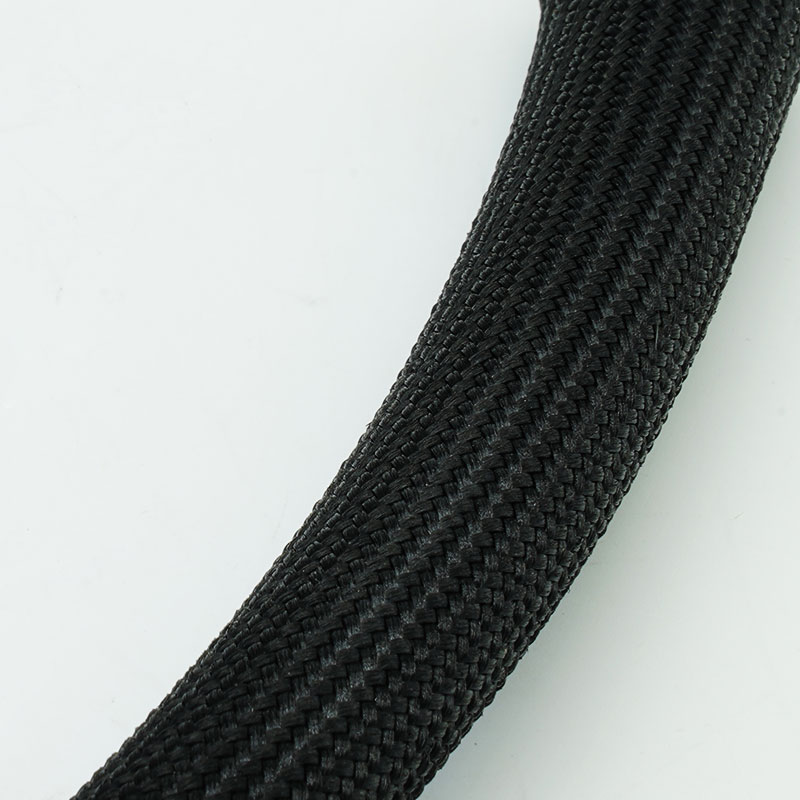

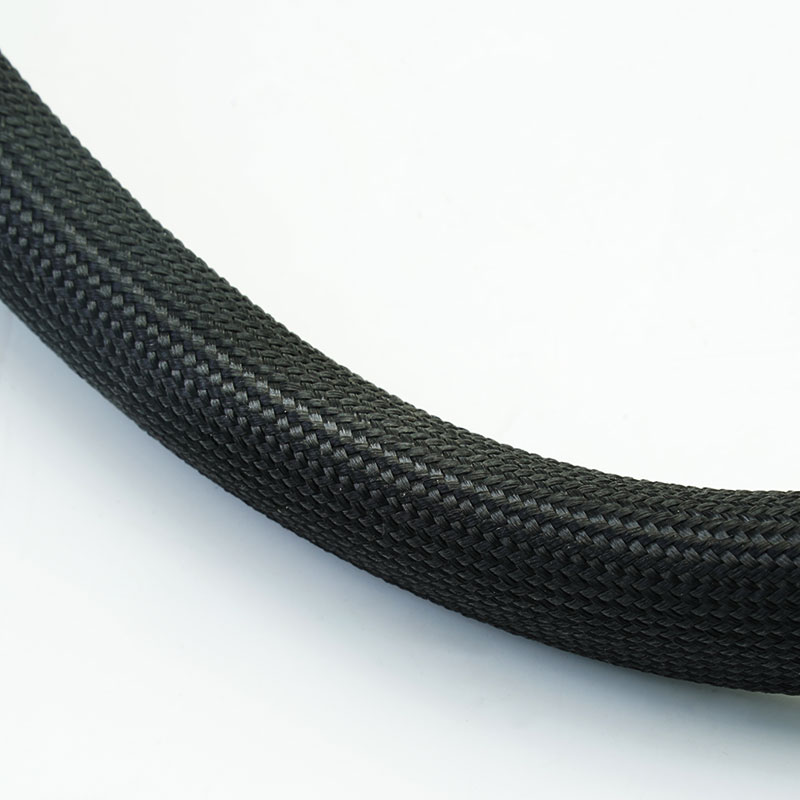

•Reinforced Fiberglass Braid
Features a reinforced fiberglass braided construction to provide reliable thermal and electrical protection for cables and related components.
• High-Temperature Resin Treatment
High-temperature resin saturation enhances braid stability and improves abrasion resistance and handling performance.
•Thermal Protection Performance

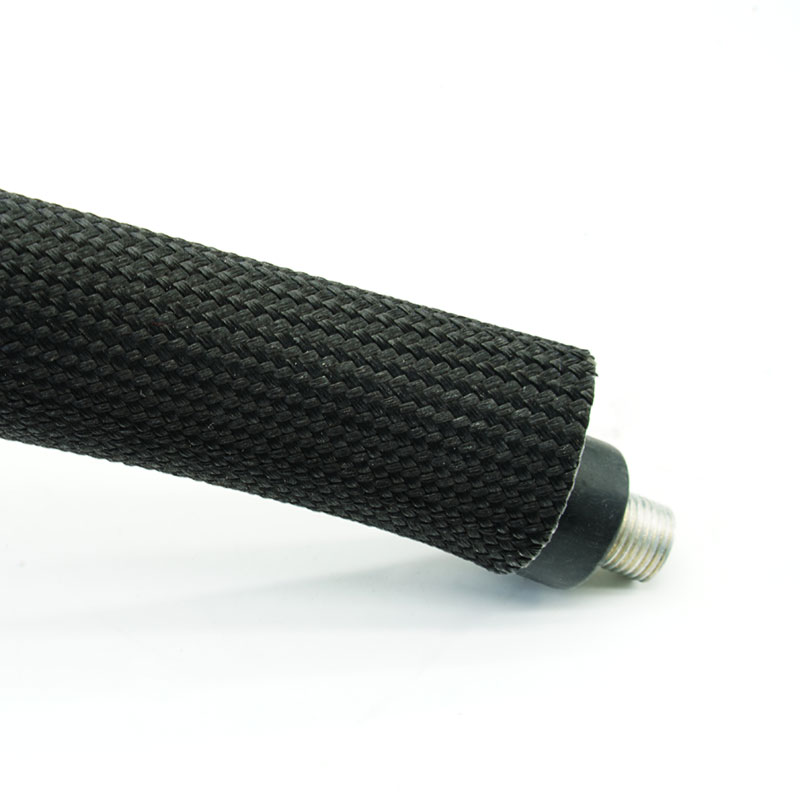

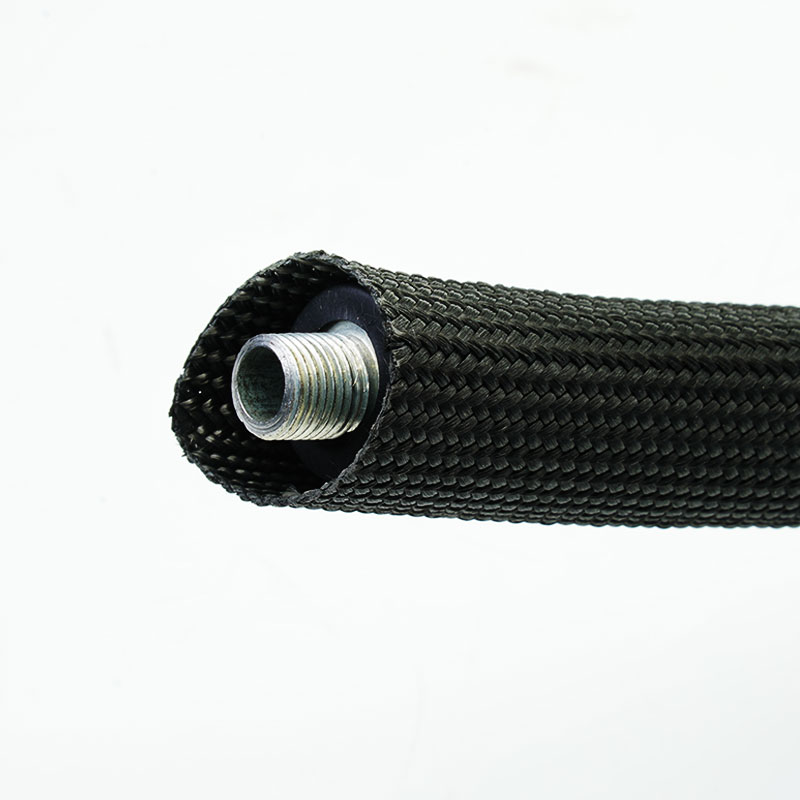

Designed to protect cables, hoses and related components in high-temperature environments.
• Enhanced Abrasion Resistance
The reinforced fiberglass braid and resin treatment help reduce surface wear caused by friction, providing mechanical protection for cables and hoses in high-temperature environments.
• Stable Construction Under Mechanical Stress
The tight braided construction helps withstand vibration, mechanical stress and handling-related wear in demanding industrial environments.
• Multiple Sizes Available
Available in multiple standard inside diameters to accommodate different cable, hose and industrial component sizes according to installation space and protection requirements.
| Braided Material |
Glass fiber |
| Coating Material |
High Temperature Resistant Resin |
| Function |
Thermal&Electrical Protection |
| Working Temperature |
-60°C to +600°C |
| Peak Temperature |
+650°C |
| UL Temperature Rating |
200°C |
| Working Voltage |
600V |
| Flammability |
VW-1 |
| UL File Number |
E553745 |
| Certifications Listed |
UL, RoHS, REACH |
| Standard Color |
Black |
| Cutting Tool |
Scissor |
| Part No |
ID
(mm) |
ID
Tolerance
(mm) |
Wall Thickness
(mm) |
Max Expansion
ID(mm) |
Packing Length
(m/spool) |
| GF-HT-O-006-BK-EH |
6.0 |
+0.50/-0.0 |
0.78±0.10 |
8 |
100 |
| GF-HT-O-010-BK-EH |
10.0 |
+0.70/-0.0 |
1.08±0.10 |
16 |
100 |
| GF-HT-O-013-BK-EH |
13.0 |
+0.70/-0.0 |
1.15±0.15 |
18 |
100 |
| GF-HT-O-016-BK-EH |
16.0 |
+0.80/-0.0 |
1.15±0.15 |
22 |
100 |
| GF-HT-O-019-BK-EH |
19.0 |
+0.80/-0.0 |
1.15±0.15 |
28 |
100 |
| GF-HT-O-022-BK-EH |
22.0 |
+1.00/-0.0 |
1.15±0.15 |
32 |
50 |
| GF-HT-O-025-BK-EH |
25.0 |
+1.00/-0.0 |
1.43±0.15 |
40 |
50 |
| GF-HT-O-038-BK-EH |
38.0 |
+1.00/-0.0 |
1.53±0.18 |
65 |
50 |
| GF-HT-O-062-BK-EH |
62.5 |
+1.50/-0.0 |
1.78±0.20 |
103 |
25 |
• Industrial motors and generators
Protects leads and cable exits exposed to heat, vibration and repeated mechanical movement.
• Metallurgy and furnace equipment
Adds reinforced insulation around control wiring and hoses near sustained high-temperature processes.
• Aerospace and automotive systems
Covers high-temperature harness sections where vibration, abrasion and compact routing occur together.
• Power conversion and electrical equipment
Insulates cables and bus-related connections that require a thicker protective wall and VW-1 performance.
• Industrial hose and sensor routes
Protects service lines passing through hot frames, clamps and equipment zones with significant contact wear.
How to Select
Measure both the normal route diameter and the largest component the sleeve must pass over. Check continuous temperature, peak events, voltage, vibration, abrasion and bend radius. A heavy wall improves mechanical protection but can affect flexibility and package size, so validate the completed assembly before production release.
• Sizes & Dimensions - Multiple standard inside diameters are available, with custom sizes subject to installation requirements for different cables and hoses.
• Braided Construction - Braid density, wall thickness and construction options can be reviewed according to project-specific protection requirements.
• Cut lengths - Different roll lengths and custom-cut pieces are available.
• Packaging - Customized spool configurations, product labeling and packaging options are available to meet bulk purchasing and delivery requirements.
GF-HT-O-EH Enhanced High Temperature Resistant Fiberglass Sleeving is designed to provide reliable thermal and electrical protection in demanding industrial environments. Our product is listed under UL File No. E553745, with a UL temperature rating of 200°C, a working voltage of 600 V and VW-1 flame resistance. It also meets applicable RoHS and REACH requirements. We maintain consistent product quality through material selection, production control and quality inspection to support customers' safety and compliance needs.
• Fiberglass and resin verification - Incoming yarn and high-temperature resin are checked against the approved construction.
• Braid and saturation control - Coverage, wall build, resin distribution and structural tightness are monitored during production.
• Expansion and dimensional testing - Nominal ID, tolerance, wall thickness and maximum expansion are checked by part number.
• Surface inspection - Broken yarns, bare spots, contamination, excessive dusting and finish defects are screened.
• Order release - Spool length, size, black color, quantity, labels and compliance documents are verified before shipment.
Frequently Asked Questions
01. What is GF-HT-O-EH fiberglass sleeving mainly used for?
Is designed to protect cables, wires and hoses exposed to high temperatures, vibration and mechanical wear. It is suitable for industrial machinery, furnace equipment, electrical systems and other demanding applications.
02. How is GF-HT-O-EH different from standard fiberglass sleeving?
Our GF-HT-O-EH features a reinforced fiberglass braid with high-temperature resin treatment, providing improved structural stability, abrasion resistance and durability compared with conventional lightweight fiberglass sleeving.
03. Can GF-HT-O-EH withstand continuous high temperatures?
GF-HT-O-EH is designed for high-temperature applications. Its stated material working temperature range is −60°C to +600°C, with a peak temperature of +650°C. The UL-certified continuous operating temperature is 200°C. Suitability should be confirmed according to the actual operating conditions.
04. Does the resin treatment reduce fiberglass dusting?
Yes. The high-temperature resin treatment helps stabilize the braided structure and reduce loose fiberglass particles during cutting and installation, making the sleeve easier to handle.
Request a Sample or Quote
Send the cable, hose or bundle OD, largest connector size, operating and peak temperature, UL requirement, voltage, abrasion points, vibration level, bend radius, preferred cut length and quantity. MJ FLEX can review the GF-HT-O-EH nominal size, expansion capacity and wall construction before arranging a sample or quotation.
